RMC RMC3FL Wah Pedal by Geoffrey Teese

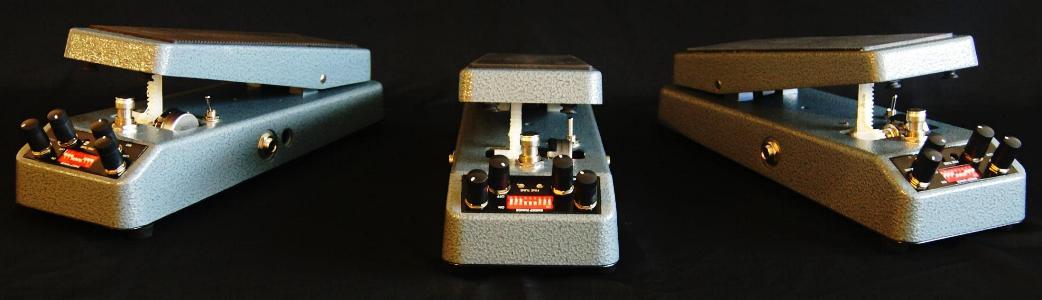

RMC RMC3FL wah pedal by Geoffrey Teese



Our Price: $255.00


Availability - time to dispatch:: Usually Ships in 1 to 2 Business Days
Product Code: RMC3FL

Power Cables for your existing multi-power supply

18" Power Cable for PP2 (one straight and one 90 degree end, unless you specify in comments) $3.50 [Add $3.50]Does not work with our $15 Boss type power supplies, has 2 male ends for use with Voodoo Labs etc

Extra 36" power Cable for PP2 with one 90 degree end $4.50 [Add $4.50]Does not work with our $15 Boss style power supplies, has 2 male ends for use with Voodoo Labs etc
Optional power supplies

Add a Power Supply:
US 120V 9vDC $15 [Add $15.00]- This is a normal 9V Boss type external power supply/adaptor for USA use with 120V AC wall power.

Add a Power Supply:
Euro 240V $15 [Add $15.00]- this is an external power supply/adaptor for use with 220/240V AC to make 9Vdc for the pedal.

Add a Power Supply:
UK 240V $15 [Add $15.00]- this is an external power supply/adapter for use with UK (3 prong) 220/240V AC to make 9Vdc for the pedal.


Description

Analog Man Guitar Effects Pedals sells the RMC3FL wah by Geoffrey Teese. This is the first boutique wah, and maybe the best! All the adjustments you need are on front now, it gets almost any tone you would like.
Features
RMC3FL
First created in 1994, as the RMC3, the Real McCoy Custom 3FL (RMC3FL) is the world's first (and only) fully tunable self-contained wah. Front-Loaded Vari-Tune circuit controls include:

LOW-Controls the amount of low frequencies present in the wah's sweep.

MID-Controls the mid-range depth of the sweep. This control affects the vocal-like quality of the wah, as the human voice falls mostly into this range.

Q Harmonic-Controls the position of the sweet spot within the sweep range.

VOLUME-Allows you to adjust the output strength of the wah.

SWEEP-This bank of 9 DIP switches allows you to select your desired sweep within a 9 octave range. The switches may be used in any combination to create familiar wah sweeps as well as some never before available. The voicing parameters go from higher than the old SCHALLER Bow-wow/Yoy-yoy pedal to deeper than any bass wah.

FINE TUNE-These 2 trimmers work in conjunction with the SWEEP DIP switches to allow you access to values "in-between" switch settings. The effect of these trimmers is slight and might not be audible to every player. For those that can hear the difference, they are available.

T
he RMC3FL is developed and built by Geoffrey Teese and includes licensed fuzz-friendly technology, EMI resistant Karmaflux inductor, heavy-duty Italian true-bypass on/off switch,exclusive RMC ROC-POT5 extra long-life sealed potentiometer,Switchcraft jacks, easily adjustable rocker tension, and AC adapter jack, and is covered by our limited one year warranty. The RMC3FL also features the under-the-rocker toggle switch to change sweep speed and low end resonance. The RMC3FL is housed in our new extended wah shell with a silk-screened bottom plate, classic grey hammertone finish, and topped with a black footpad
.

US MSRP: $255

Specifications subject to change without notice.

Model number: RMC3FL
Current draw: <10 mA
If an AC adapter is used, the adapter requires a 5.5/2.1mm coax plug with a negative center post, 9VDC AC regulated Class II, 20mA to 200mA max current output.

RMC3 users manual: See the RMC3 Manual page for the users manual and settings on the wah.

Specifications subject to change without notice.

See the Harmony Central reviews on the RMC wahs.

Sound Samples

Here are some samples of the RMC wahs by Roger Filgate. He played a Les Paul through a blackface Deluxe Reverb with no other effects:
RMC1
RMC3
RMC Picture Wah

See the RMC Adjustment Manual page for excellent info from Mr. Teese.


Average Customer Review: 5 of 5 Total Reviews: 1 Write a review.

  0 of 0 people found the following review helpful:

On Par With My Sun Face & Fuzz Factory June 21, 2011
Reviewer: Matt Herman from San Francisco, CA United States
This is kind of like the SansAmp Classic or ZVex Fuzz Factory of the wah world.

Though tweaking gives endless subtle (or extreme) shades, I quickly found what sounded best to me, and I've barely changed settings since...preferring to just *play* it.

This is, as they say, 'built like a tank', and works well both before and after a fuzz. It's intoxicatingly deep and rich (unless you want it sharp and biting, which it can also totally do).

And on top of all this both AnalogMan & Geoffrey Teese have excellent, prompt customer service.
